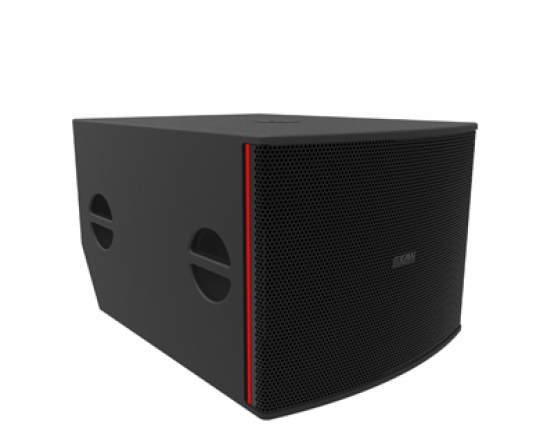

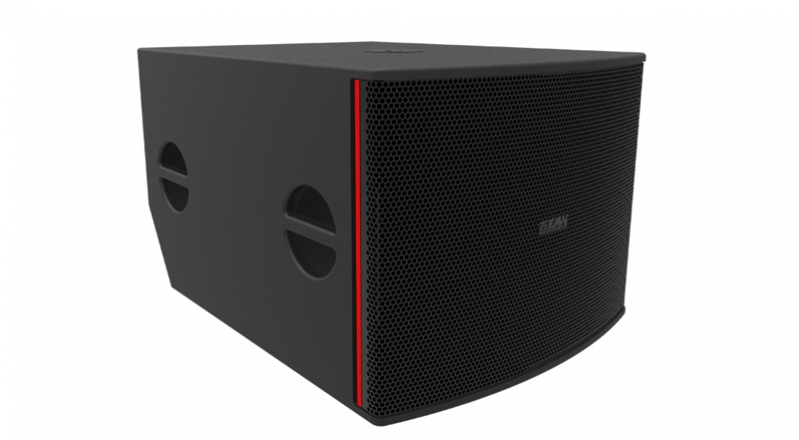

RL18S
Overview

From corporate events to festivals, every aspect of the design has been targeted at making life easier for the live sound professional. From transducers and electronics to enclosure design and fitments, Redline is built to live in the working world of demanding clients, tight schedules and even tighter budgets.
The RL18S includes a complete on-board 1,000-watt electronics package mated to a highly-customized precision transducer engineered to meet the specific demands of the Redline family. In addition to signature EAW acoustical design, DynO™ algorithms optimize the power transfer from amplifiers to transducers to audience to optimize headroom and integrity of sound at maximum output. Push-button cardioid functionality (using two or more RL18S subwoofers) keeps low-frequency energy off the stage and on the audience, and a rear-panel LED mute keeps Redline invisible in aesthetically-sensitive situations.

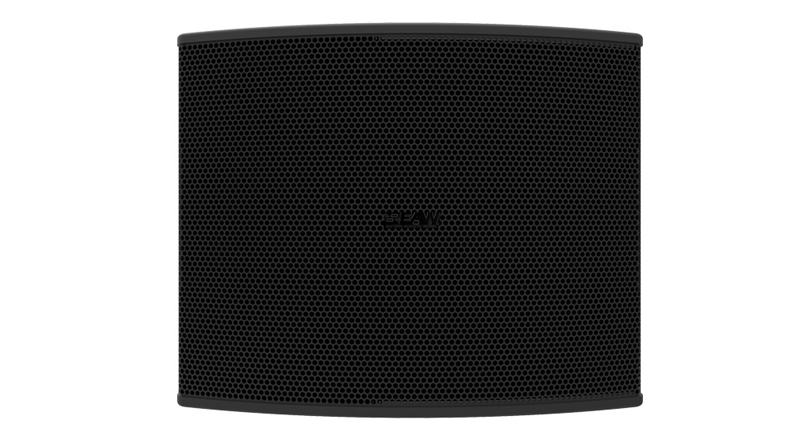

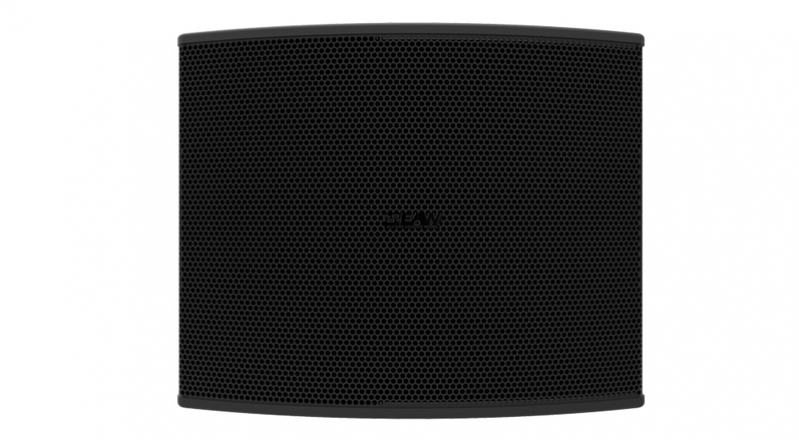

The RL18S enclosure incorporates EAW’s signature SB enclosure rear angle to minimize input panel visibility in cardioid mode, integral road glove-ready wood handles and sleek but strong sculpted grilles on RoadCoat™ enclosures that can take a beating without showing it. In short, Redline is meant to be used – over and over.



FEATURES
● Superb sound quality at any output level due to custom-designed transducers and porting, signature EAW Focusing™ and DynO™ dynamic optimization processing and  1,250 watts of bi-amplified Class-D Power Factor Corrected amplification

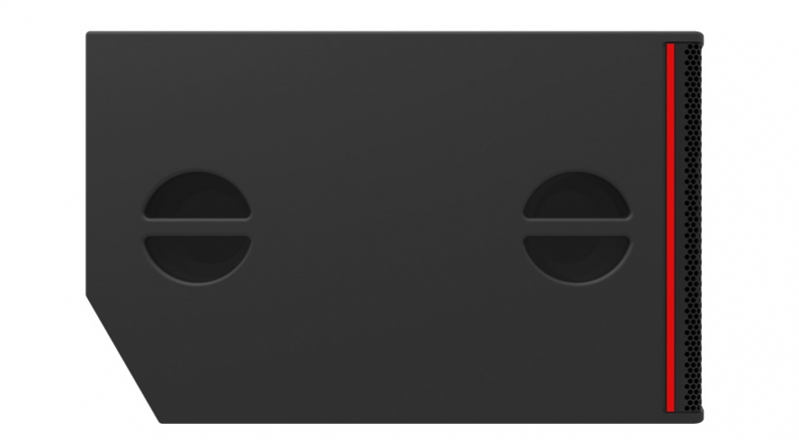

● Road-ready EAW Roadcoat™ wooden enclosure with integral glove-ready handles, pole cup and M8 suspension points
● Enclosure depth is optimized so that, with one subwoofer rotated, cardioid pattern can be generated in seconds with two button presses

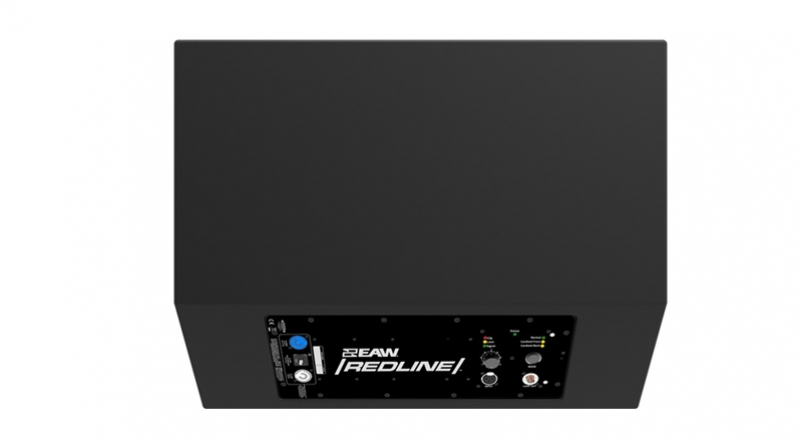

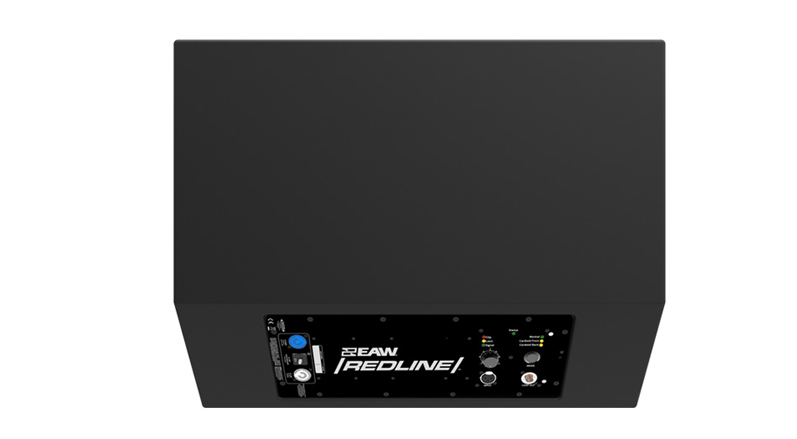

● Recessed input panel with push-button cardioid functionality, rear-panel LED mute function, robust PowerCon inlet and loop connectors and LED mute function for visually-sensitive environments

Specification
  • CONFIGURATION
    Subsystem
    Transducers:
    1× 18in,4in voice coil cone
    Loading
    Vented

  • Operating Mode
    Single Amp
    Signal Processing

    DSP w/DynO™

  • ACCOUSTICAL PERFORMANCE
    Operating Range
    30 Hz to 160 kHz
    Nominal Beamwidth
    Horizontal 360°
    Vertical 360°
    Axial Output Limit Peak (whole space)
    VLF 127 dB
    Axial Output Limit Long Term (whole space)
    VLF 121 dB
    ELECTRICAL PERFORMANCE
    Input

    Electronically balanced XLRF
    Loop
    Electronicallly balanced XLRM
    Amplifier
    Class D
    1000 W @ 8 ohm
    Integral DSP limiting
    AC Mains (nominal)
    Neutrik PowerCon
    50 Hz to 60 Hz
    100V to 240V
    Indicators (LED)
    Amplifier Status
    Signal Present
    Limiter Active
    Clip
    Mode 3x

  • ORDERING DATA
    Description
    EAW RL 18S SELF-POWERED SUBWOOFER
    Part Number
    2045322-90
