DX32
Overview

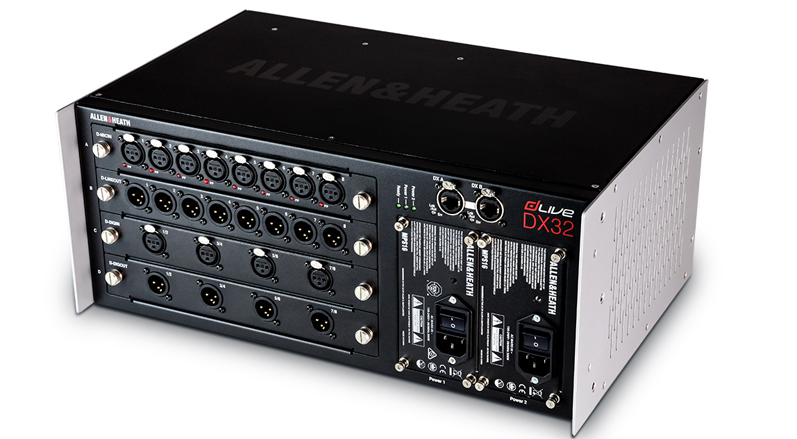

The DX32 Expander adds remote, modular I/O to a dLive system. It provides 4x 8 channel slots to fit a selection of analogue or digital I/O. Up to 2 DX32 Expanders can be connected to the MixRack, and a further DX32 can be connected to the Surface.

Specification
  • 4x 8ch modular design

  • Redundant, hot swappable power supply

  •  Dual redundant Cat5 link to Surface or MixRack

  • Rack-mounted or shelf / floor operation

  • AVAILABLE I/O MODULES:
    • M-AIN – 8 recallable preamps with XLR connectors for balanced or unbalanced microphone and line level signals. Gain, Pad and 48V are digitally controlled within the preamp.
    • M-AOUT – 8 line level, balanced XLR outputs. The outputs are relay protected to prevent power on or off thumps.
    • M-DIN – 4x stereo AES3 inputs on XLR with SRC (32kHz – 192kHz sampling rate). Sample Rate Conversion can be bypassed for 96kHz operation.
    • M-DOUT – 4x stereo AES3 outputs on XLR (44.1kHz, 48kHz or 96kHz switchable).
