SB250Z SUBWOOFER
Overview

The SB products are EAW’s premium subwoofers designed for the most demanding professional applications. Abroad range of capabilities and sizes provide the designer with selections that can be specifically matched to their application. Top quality drivers, engineered by EAW, provide the highest output and best sonic performance possible for a given form factor. All SB models are direct radiating, with optimally tuned, vented enclosures. SB subwoofers are the choice where the best sonic performance, highest reliability, and most robust physical construction are required.

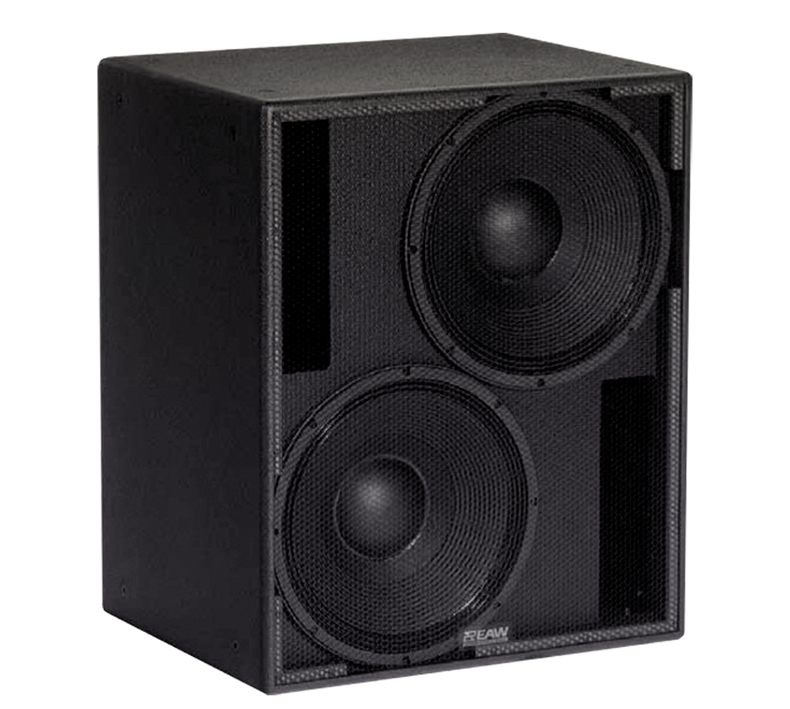

The SB250z is a high output, compact subwoofer system. This versatile, all-purpose subwoofer is designed for permanent installation where the solid sound and impact of dual 15 inch drivers is desired. The SB250z works well with most full-range loudspeakers in a variety of applications including: small houses of worship, small auditoriums/theaters, A/V systems, hotel ballrooms, meeting rooms, classrooms, exhibit areas, f/x reinforcement, cruise ships, cinemas, and small dance clubs.

The SB250z is designed to be used with today’s sophisticated digital signal processing to optimize the LF response. MX Series processors are recommended for the required crossover and equalization.

    ●High output, compact subwoofer system
    ●Designed for permanent installation where the size and the impact of a 15 inch driver is desired
    ●Ideal applications include: small houses of worship, small auditoriums/theaters, A/V systems, hotel ballrooms, meeting rooms, classrooms, exhibit areas, f/x reinforcement, cruise ships, cinemas, and small dance clubs.

Specification

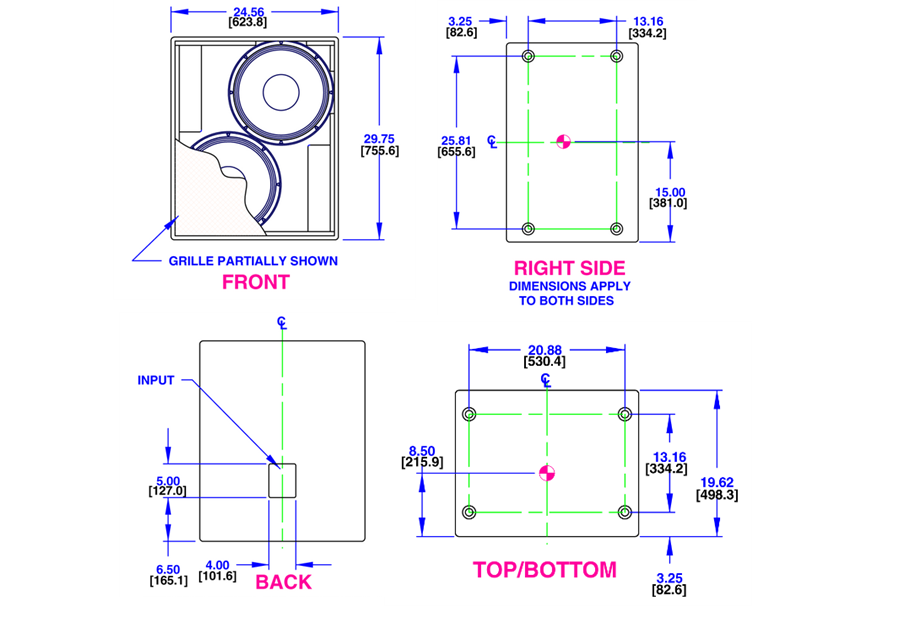

  • Transducer: SUB 2x 15 in. cone Loading: Vented Amplifier Channels: Single-amp LF1/LF2; Dual-amp LF1,LF2 External Signal Processing: DSP w/1-way filter PERFORMANCE Operating Range (-10 dB, Hz) 36 – 150 Axial Sensitivity (1W @ 1m, dB SPL) Sub (whole space): 96 (2x) Power Handling / Impedance (Watts @ Ohms) Sub (single amp): 1050 @ 4 Sub (parallel amps): 525 @ 8 Calculated Maximum Output Peak (dB SPL) Sub (whole space): 139 Calculated Maximum Output Long Term (dB SPL) Sub (whole space): 127 ORDERING DATA Versions SB250zP Black 0008964-90 SB250zP White 0011318 SB250zP-WP Black 0009050 Accessories Part Number 3/8-16 Forged shoulder eyebolt 104001 Dimensions (inches/millimeters) Height: 29.75/755.6 Width: 24.75/623.8 Depth: 19.62/498.3 Weights (pounds/kilograms) Net: 112/50.8 Shipping: 122/55.3 Download the SB250zP Spec Sheet
