The Green-GO communications system is a Ethernet network based digital intercom system. Users can talk to multiple groups and/ or direct to other users. Talking to a group can be compared to the analogue party-line or ring. A direct user talk is a private conversation. There is NO central matrix or routing engine required for the system, so it scales as it is needed by just adding devices to the network.
An extra advantage of having no central unit, there is no single point of failure.

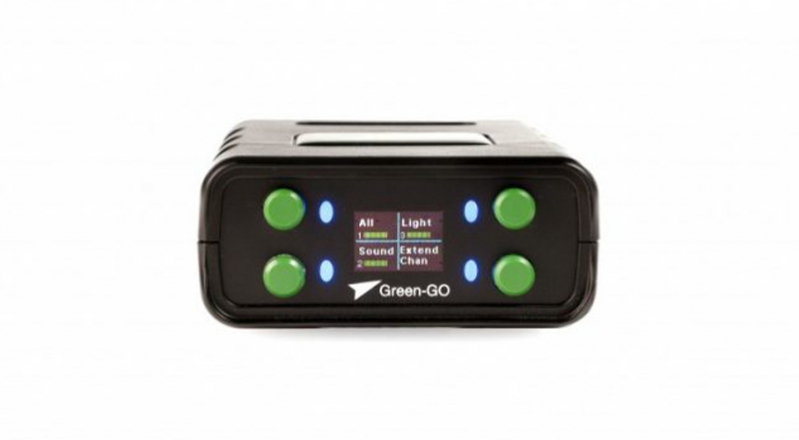

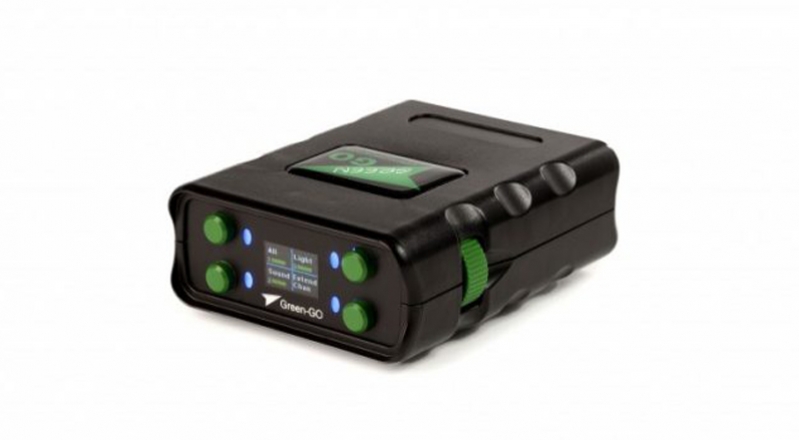

The Green-GO Belt-pack features a fullcolour OLED high- resolution display, providing text information, cue signals, and the functions of the 4 buttons.

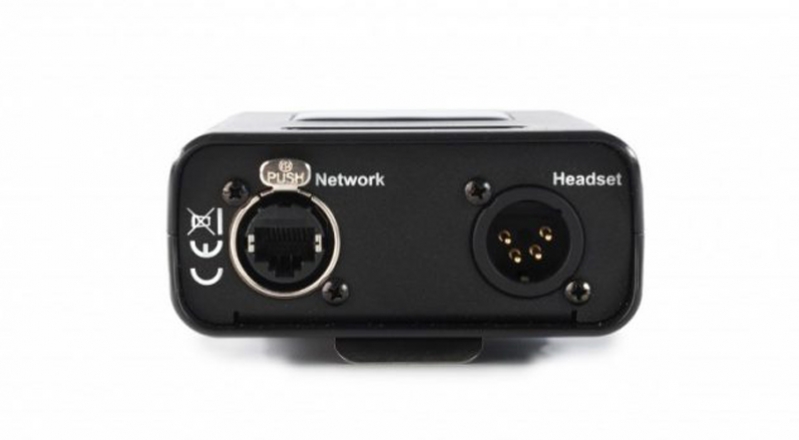

Two rotary encoders, one on either side of the unit to suit both right and left handed users, are push-able to answer the latest audio source. They can also be programmed to control various other functions, for example one for level and one for channel selection. Four push buttons can be configured to provide instant access up to four channels. All matrix data is held within the belt-pack, which is powered via POE. Headphone/ microphone set (not supplied) connects via a 4-pin XLR4 panel connector.
32 Channels
This system has 32 channels, a program audio channel and an extra channel to receive direct user communication.
250 Groups
An analogue system has one or two groups, the Green-GO system offers a maximum of 250 groups.
3000 Users
A user can be active on any device, even on multiple devices. Each user has a unique ID and a human readable name.
Specification
• Dimensions of Beltpack: 145mm x 85mm x 30mm
• Weight of Beltpack: 400g
• Powered by PoE (802.3af Standard Power over Ethernet) from the Ethernet port.
