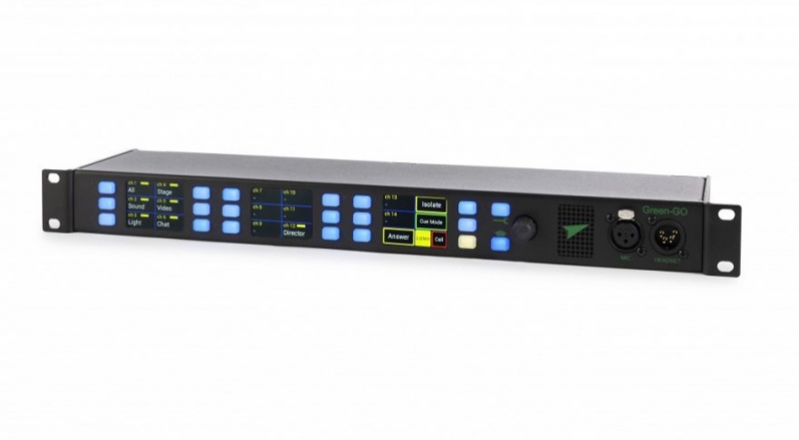

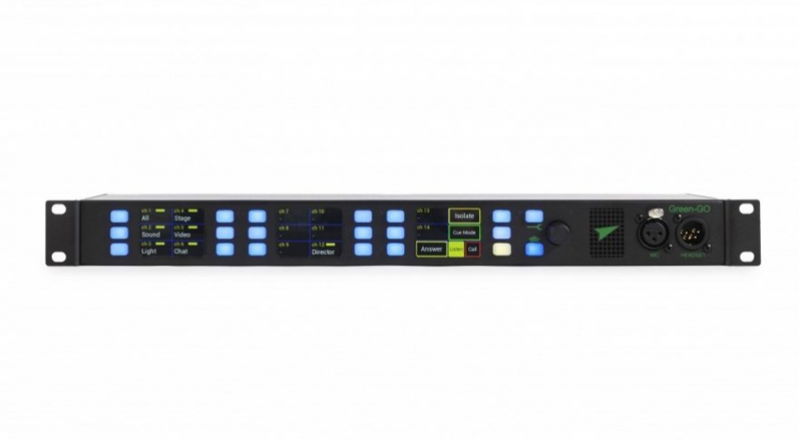

The Green-GO multi-channel stations provide 2 pages of 18 individual RGB pushbuttons for direct access to a user or a group. 3 TFT touch screen displays give the individual name, volume levels and status. Talk, listen, call and cue function are reachable either thru the TFT screen or on the push button. The stations have an integral loudspeaker and microphone XLR connector. Line in/out connections and routing are provided for show relay, distributed audio and paging. announcements.

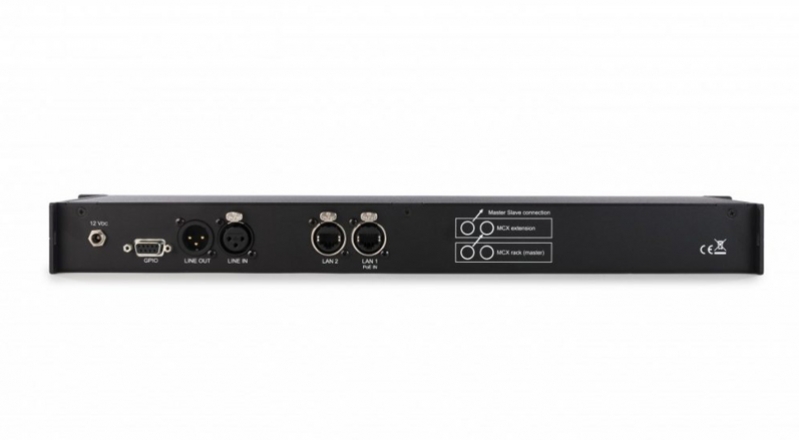

A stalk microphone (not supplied) connects via a 3- pin XLR front panel connector, and there are twin Ethernet connections with integral switch. Each push button can be assigned to one of the 250 groups or 3000 users. Up to 9 MCXD-EXT extension desk can be daisy chained to one MCXD master. Operates with any Green-GO beltpack or other multichannel desk connected in the same network (no matrix required).

Features include:
• Provides distributed audio, show relay and paging system features
• Powered by Power Over Ethernet (suitable network power supply is needed e.g. Green-GO 5-port switch) or separate DC power supply
• Includes 2 Ethernet LAN sockets with 100MBit switch
• All interconnection routing data, system setup and preferences are held in local memory and updated via the network and is updated/ replaced if a multi-channel desk is changed
• Green-GO setup freeware may be downloaded from the Green-GO website
