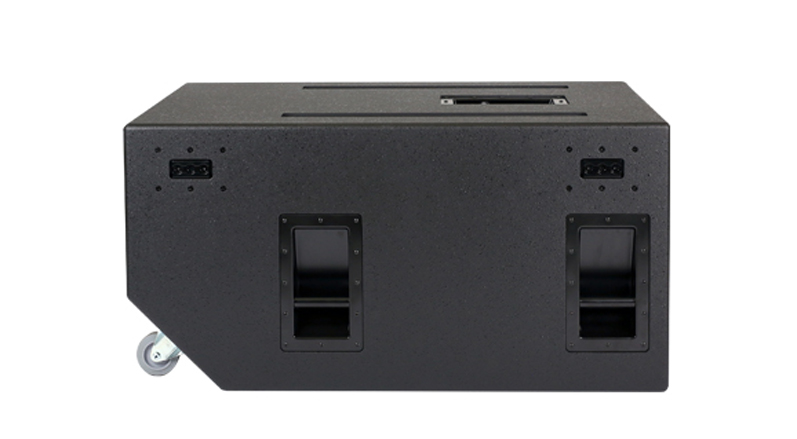

The legendary SB1000z is a high output, large-format subwoofer system with proven performance in complementing high efficiency, full-range loudspeakers. It is designed for portable use where the fatter-sounding output of dual 18 inch drivers is desired. The SB1000z’s driver mounting maximizes cone area and minimizes frontal area, providing the acoustical performance and physical configuration well suited for creating large subwoofer arrays. Its applications include: concert touring, arenas, band/club PA, large houses of worship, large auditoriums/theaters, stage/performer monitoring, drum fill monitoring, and large dance clubs.
The SB1000z is designed to be used with today’s sophisticated digital signal processing to optimize the LF response. MX Series processors are recommended for the required crossover and equalization.
● Best sonic performance possible for a given form factor
● Direct radiating, with optimally tuned, vented enclosures
● High output, large-format subwoofer system with proven performance
● Ideal for concert touring, arenas, band/club PA, large houses of worship, large auditoriums/theaters, stage/performer monitoring, drum fill monitoring, and large dance clubs.
Transducer: SUB 2x 18 in. cone Loading: Vented Amplifier Channels: Single-amp LF1/LF2; Dual-amp LF1, LF2 External Signal Processing: DSP w/1-way filter PERFORMANCE Operating Range (-10 dB, Hz) 28 – 156 Axial Sensitivity (1W @ 1m, dB SPL) Sub: 96 (whole space) Power Handling / Impedance (Watts @ Ohms) Sub – Single Amp: 1400 @ 4 Sub – Parallel: 2x 700 @ 8 Calculated Maximum Output Peak (dB SPL) Sub (whole space): 133 Calculated Maximum Output Long Term (dB SPL) Sub (whole space): 127 Powering Single/dual ORDERING DATA Versions SB1000zR Black 997134-90 SB1000zP Black 00020845-90 SB1000zP White 0032433 Accessories Part Number 3/8-16 Forged Shoulder Eyebolt 104001 Dimensions (inches/millimeters) Height: 21.19/538 Width: 29.81/757 Depth: 42.19/1072 Weights (pounds/kilogram) Net: 162/73.5 Shipping: 189/85.7
