DX Hub
Overview

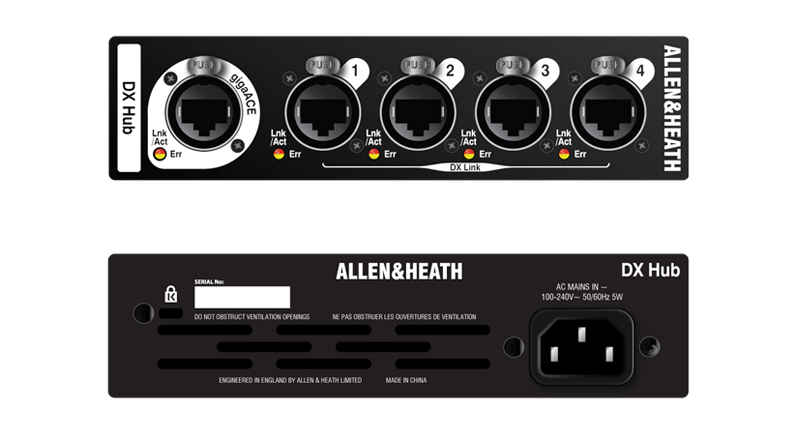

The DX Hub audio networking hub (DX-HUB) is a remote audio networking hub that can be connected to any Allen & Heath dLive fitted with a gigaACE I/O module. It provides 4 DX Link ports each carrying 32x32 channels of 96kHz audio, that can be used to connect to dLive DX expander units.

1 DX32 or up to 2 DX168/DX164-W expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the dLive system per DX Hub module. 2 DX Hub modules can be used for a dual redundant system.

Specification
  • 4 DX Link ports for connection to DX Expanders

  • Locking etherCON connectors

  • Compatible with DX32, DX168 and DX164 audio expanders

  • 32x32 audio channels (96kHz) per DX Link port

  • Cat5e connection (<100m) to gigaACE I/O option module

  • Freestanding or 19” rack-mounted operation

  • Optional rack mount kit
