AVALON CLUB.TWO
Overview

CLUB.two

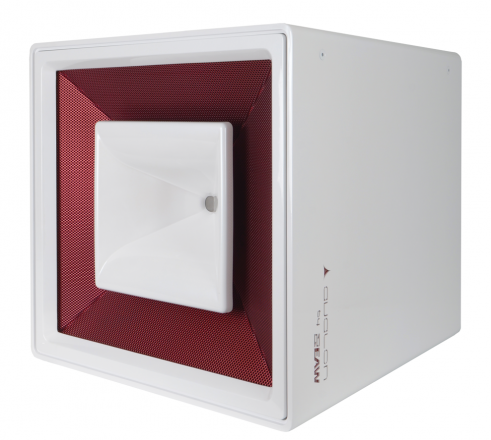

The current flagship, the CLUB.two offers superior output and control in an enclosure that can only be Avalon by EAW™. A highly directional acoustical design creates crushing sound levels on the dance floor while minimizing spill onto walls and ceilings. The CLUB.two is ideal as mains for the largest clubs.

LOOKS LIKE THE FUTURE.SOUNDS LIKE THE FUTURE.
Even the best loudspeaker designers struggle to meet the demands of the dance club world. And nobody in the dance club world has the scientific background or the technical facilities necessary to design a top-quality loudspeaker system. But Avalon by EAW is different from everything else. These amazing loudspeakers result from a unique partnership between a dance club designer and a loudspeaker designer. By combining their skills, they produced the most remarkable loudspeaker technology ever applied to the dance club world.

MID/HIGHS (500 HZ TO 20KHZ)
The word here is “efficiency”. EAW engineers have specified a coaxial mid/high compression with such high sensitivity that it produces peak output of around 136 dB using only 150 Watts of amplifier power. This compression driver, used in both the CLUB.two and the CLUB.three, is then loaded with 90 (h) by 60 (v) and 90 by 90 horns, respectively.
The acoustical challenge in the mid/high region has always come from physically aligning the mid and high frequency sections to sum coherently, without anomalies in the crossover region. Because the Avalon by EAW uses a single, coaxial mid/high driver, EAW engineers have eliminated this problem entirely.

BASS (100 HZ TO 500 HZ)
Except in rare circumstances, EAW engineers prefer to use smaller low frequency cones to avoid a loose, sloppy bass sound. To get the right amount of output, they use many of them together. The exception, of course, comes when they find a larger cone driver that has the speed required to work on its own. In Avalon, they’ve used both approaches.
CLUB.two. uses four 12-in LF cones arranged in a symmetrical pattern behind the mid/high section. These drivers sum to produce the output of larger drivers without suffering from the slow response usually associated with big cones.

1. Very high output, full range system
2. Quad 12-in LF cone drivers
3. Ultra-efficient, coaxial MF/HF compression drivers
4. “Fitments” available in four distinctive colors
5. Optional high-gloss enclosure finishes

Specification
  • CONFIGURATION
    Subsystem
    LF: 4x 12-in cone, tuned spacing
    MF: 1.4-in exit compression driver, horn-loaded, coaxial with HF
    HF: 1.4-in exit compression driver, horn-loaded
    Powering
    Bi-amplified (passive MF/HF)

  • PERFORMANCE
    Operating Range (-10 dB, dB SPL)
    40 to 20k
    Axial Sensitivity (1W @ 1m, dB SPL)
    LF: 102
    Passive MF/HF: 109
    Power Handling/Impedance (Watts @ Ohms)
    LF (single amp): 2000 @ 2
    LF (parallel): 1000 @ 4 (2x)
    Passive MF/HF: 150 @ 8
    Calc. Max. Output Peak (dB SPL)
    LF: 141
    Passive MF/HF: 137
    Calc. Max. Output Long Term (dB SPL)
    LF: 135
    Passive MF/HF: 131
    Nominal Coverage (degrees)
    Horizontal: 90
    Vertical: 60

  • ORDERING DATA
    EVERY INSTALLATION MUST BE A GEM
    Avalon by EAW delivers the ultimate dance club sound experience for those who seek the very finest life has to offer. To ensure that every Avalon by EAW installation is an absolute gem, all projects must use an Avalon by EAW Authorized Sound Designer from our global network of the world’s best dance club sound designers.
    Authorized Sound Designers will work in partnership with venue owners, architects, interior designers and EAW’s renowned Application Support Group (ASG) to create and install sound systems carefully crafted to the needs of each venue.
    After ASG reviews and approves a design submitted by an authorized sound designer, EAW will accept an order and the system can be installed. When installation is complete, ASG will visit the site to inspect and help commission the system. All commissioned systems will be certified with an Avalon by EAW Certified plaque listing the club name, registration number and date of commissioning.

  • FINISHES
    All Avalon by EAW orders must specify a finish package. Standard packages include four options for the grille and logo. Horn (where exposed) and surround trim ring can match the grille/logo (color-matched) or match the enclosure, using the premium finish (Piano for standard black / Polar for standard white). Premium packages use automotive-class enclosure finishes in Piano Black and Polar White.
    Dimensions (inches/millimeters)
    Height: 29.0/737
    Width: 29/737
    Depth: 31.4/747
    Weights (pounds/kilograms)
    Net: 206/94
