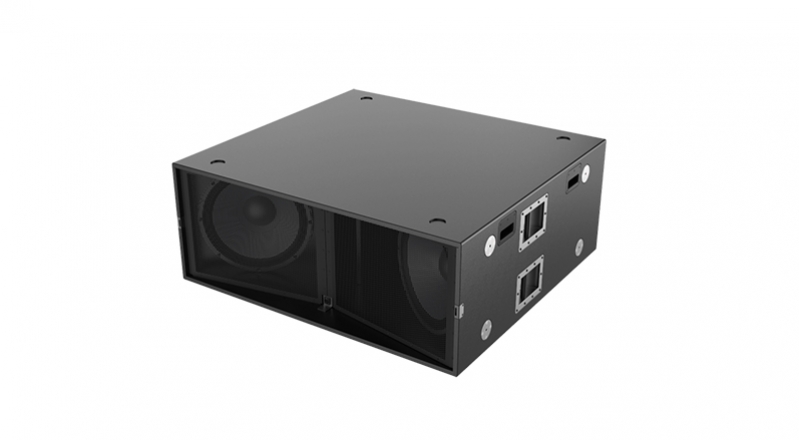

Regardless of whether your music content is Live Classical, or Canned DubStep, the LS-218 delivers power that you can feel, and does so in a very musical way. It features an advanced port design optimizing chamber size, port velocity and acoustic loading of the dual 18” woofers. The enclosure has superior sensitivity, power handling and provides increased gain over typical front-loaded designs. The cabinets were designed for easy stacking and for use as a cardioid pattern acoustic solution where rear and side-firing low frequency pattern control is desired.
Features
2 18” Drivers feature 4-inch diameter voice coils and advanced vented neodymium motors
Transducer design provides lighter weight and increased efficiency
Enclosure constructed of 19-ply Baltic Birch; finished in wear-resistant black polymer coating
8 rigging points w/8mm quick pins provided to attach flyware, flybars and additional cabinets
Each 8 ohm driver can accommodate program power of 1600 watts and peak power of 2400 watts
Rigging Bars, Caster Carts and Soft Covers available separately
Front and rear Speakon NL4s provided (for use in cardioid arrangements)General
Woofer Size : 18.00” (457mm)
Voice Coil Diameter: 4.00” (100mm)
Magnet Type: NeodymiumConstruction Features
Hardware/Flyware: (8) Custom Pin Inserts
Dimensions (inch): 51.8” W x 20.1” H x 47.3” D
Dimensions (mm): 1300 W x 510 H x 1200 D
Weight (lbs/kg): 270 lbs (123 Kg)Performance Specifications
Frequency Response: 28Hz – 120Hz (-3dB) 22Hz – 160Hz (-10dB)
One LS Cabinet
Sensitivity: 101dB @ 1W/1 Meter
Max SPL Long-term: 140dB
Max SPL Peak: 143dB
Two LS Cabinets
·Sensitivity: 104dB 1W/1 Meter
·Max SPL Long-term: 143dB
·Max SPL Peak: 146dBSettings & Impedance
Crossover Point: 80Hz – 120Hz
Nominal Impedance: 2 x 8 Ohms Amplification
Continuous Power Rating: 1200W RMS (ea 8 Ohms)
Program/Peak Power: 2400W/3600W (ea 8 Ohms)
Recommended Amplification: 3200W @ 8 Ohms eaSpecifications
WOOFER SIZE 18.00” (457.2mm)
VOICE COIL DIAMETER 4.00” (101.6mm)
MAGNET TYPE Neodymium
