MK8126i/iu
Overview

The MK8126 two-way loudspeaker system sets the new standard in installation performance by solving the chronic problems of compact two-way loudspeakers. Yet it’s size is actually smaller than many of the compact two-ways it outperforms.
The HF horn loading the 1-in exit/1.5-in voice coil compression driver is larger than most traditional compact two-way horns. This extends pattern control lower into the midrange than would otherwise be possible and allows the horn’s pattern to overlap the woofer’s pattern in the critical crossover area.

Advanced beamwidth matching crossover point selection transitions between the subsystems exactly where the HF horn’s 120° (h) x 60° (v) coverage pattern matches the woofer’s pattern. This eliminates the beamwidth mismatch that creates off-axis voids in the crossover area of traditional two-way systems.

The internal passive crossover/filter network uses complex, asymmetrical slopes to integrate the subsystems and goes beyond merely dividing the signal to perform critical equalization functions.

1. System includes an 8-in woofer and a 1-in exit/1.5-in voice coil compression driver on a 120° x 60° CD horn
2. Internal passive crossover/filter network allows powering by a single amp channel while smoothing power response
3. Beamwidth optimized crossover points eliminate off-axis voids through crossover
4.User-rotatable horn lets you “rotate the enclosure around the horn” to mount them vertically or horizontally

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF – 1x 8 in. cone;  HF – 1x 1-in exit/1.5-in voice coil compression driver on CD horn
    Loading: LF – Vented; HF – Horn-loaded
    Operating Mode:
    Amplifier Channels: Single-amp LF/HF
    External Signal Processing: High pass filter; DSP w/2-way filters

    PERFORMANCE

    Operating Range (-10 dB, Hz)
    60Hz – 18KHz
    Axial Sensitivity (1W @ 1m, dB SPL)
    Full Range: 95
    Power Handling/Impedance (Watts @ Ohms)
    Full Range: 300 @ 8
    Maximum sound pressure level (dB SPL)
    126
    Nominal Coverage (degrees)
    Horizontal: 120
    Vertical: 60
    Powering
    Full range

  • ORDERING DATA
    Versions
    MK8126i Black 0031667
    MK8126i White 0031668
    MK8126iMT 128W Black 0031693
    MK8126iMT 128W White 0031699
    MK8126iMTPL-WP 128W Black 2036609
    MK8126iPL-WP Black 2035764
    Accessories     Part Number
        U-Bracket MK8100 Black, UBKT81    0015344
        U-Bracket MK8100 White, UBKT81    0015829

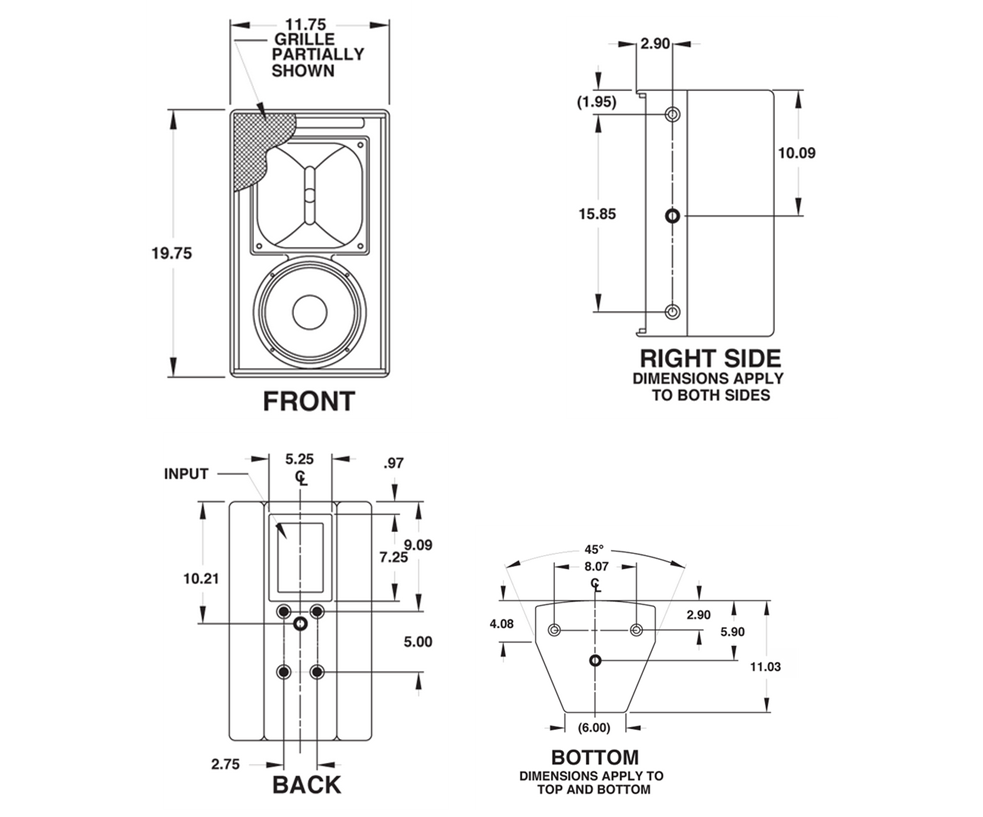

    Dimensions (inches/millimeters)
    Height: 19.75/502
    Width (front): 11.75/299
    Width (rear): 6.00/152
    Depth: 11.03/280
    Trap. Angle (degrees per side): 22.5
    Weights (pounds/kilograms)
    Net: 31/14.1
    Shipping: 34/15.5
