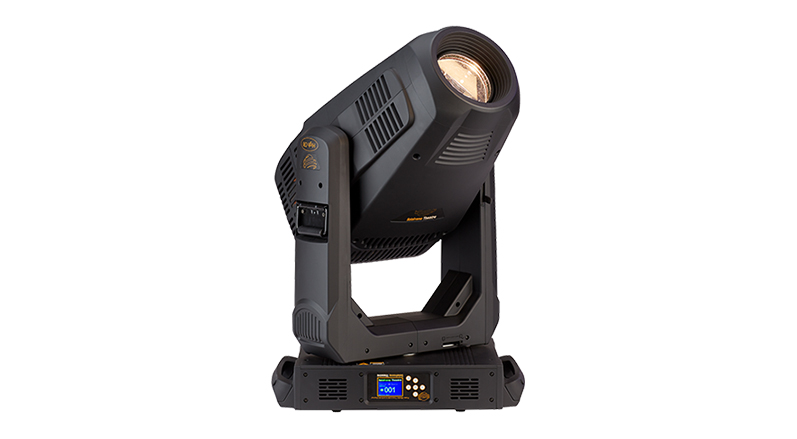

SOLAFRAME THEATRE
Overview

SolaFrame Theatre is the industry’s first automated LED luminaire to deliver completely silent operation.

Engineered with no fans, SolaFrame Theatre features a special high-CRI Bright White LED engine. The fixture delivers 15,000 field lumens and features our full-frame shuttering system. SolaFrame Theatre is a natural fit for designers that work in theatres and other venues where fixture noise is simply not acceptable.

Specification
  • Features:
    ·   Modular construction: Pan – 540°
    ·   Fast Service Design: Tilt – 265°
    ·   No Fans: Max Speed Pan (540°) – 4.36s
    ·   LED Type – 440W High CRI Engine: Max Speed Tilt (265°) – 2.42s
    ·   LED Life – L70 Rating 50,000 hours: Full color LCD Display w/ Battery Mode
    ·   RDM compatible: 5-Pin DMX/RDM Connector
    ·   Control Options – DMX 512 / RDM / Art-Net: Ethernet in and Passive thru
    ·   DMX Channels – 47: PowerCON TRUE1 Connector
    ·   Integrated Yoke Arm Handles: Pan and Tilt Locks
