MW12 – STAGE MONITOR ENCLOSURE
Overview

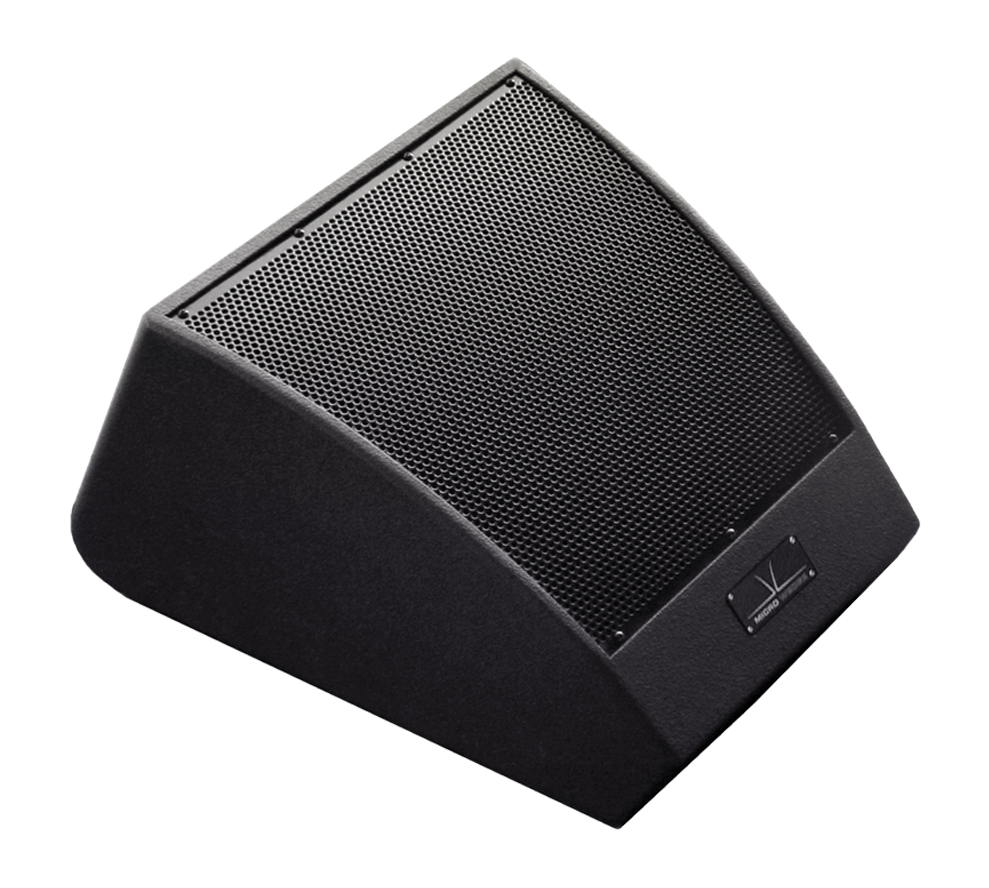

The MicroWedge MW12 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 12-inch woofer with a 1.75-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

The port on the front of the cabinet enhances LF response in coupling with the floor, the opening also houses a convenient carrying handle and dual NL4 connectors.

The Baltic birch cabinets are available in a black or white finish. The black monitors are protected with EAW’s RoadCoatTM which provides a black finish and tremendous scratch resistance. The white monitors are coated in an extremely durable latex finish. The rugged steel grill keeps its distinctive shape even if stood upon. Points for Omni-mount plates are located the bottom of the MW12 to aid in hanging the monitors.

For applications that require enhanced performance the MW12 can be optimized using the EAW UX8800 digital signal processor.

1. Highly coherent coaxial design (12-inch woofer)
2. Enhanced fidelity and power handling
3. Upgraded transducers and crossover design
4. Convenient input connector location
5. Sturdy balance for console bridge monitor use

Specification
  • CONFIGURATION
    Subsystem:
    LF: 12-in cone, vented, coaxial with HF
    HF: 1x 1.4 in exit, 3 in. voice coil compression driver, Horn-loaded
    Operating Mode:
    Single-amp LF/HF; Bi-amp LF, HF
    High pass filter; DSP w/2-way filters

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    64 – 20k
    Axial Sensitivity (1W @ 1m, dB SPL)
    LF: 95
    HF: 106
    Full Range: 94
    Power Handling / Impedance (Watts @ Ohms)
    LF: 600 @ 8
    HF: 150 @ 8
    Full Range: 600 @ 8
    Maximum sound pressure level (dB SPL)
    140
    Nominal Coverage (degrees)
    Horizontal: 90
    Vertical: 90
    Powering
    Switchable: full range or biamplified

  • ORDERING DATA
    Versions
    MW 12 Black 0011736-90
    Accessories     Part Number
        Microleg 4in, ACC-ML4    0031453
        Pole adapter MW [ACC-PAMW]    2034971
    Dimensions (inches/millimeters)
    Height (min. stage): 13.14/334
    Width (front): 12.0/305
    Width (rear): 17.27/439
    Depth: 22.80/579
    Trap. Angle (degrees per side): 6.5
    Floor (degrees up): 27
    Weights (pounds/kilograms)
    Net: 47/21.3
    Shipping: 60/27.4
