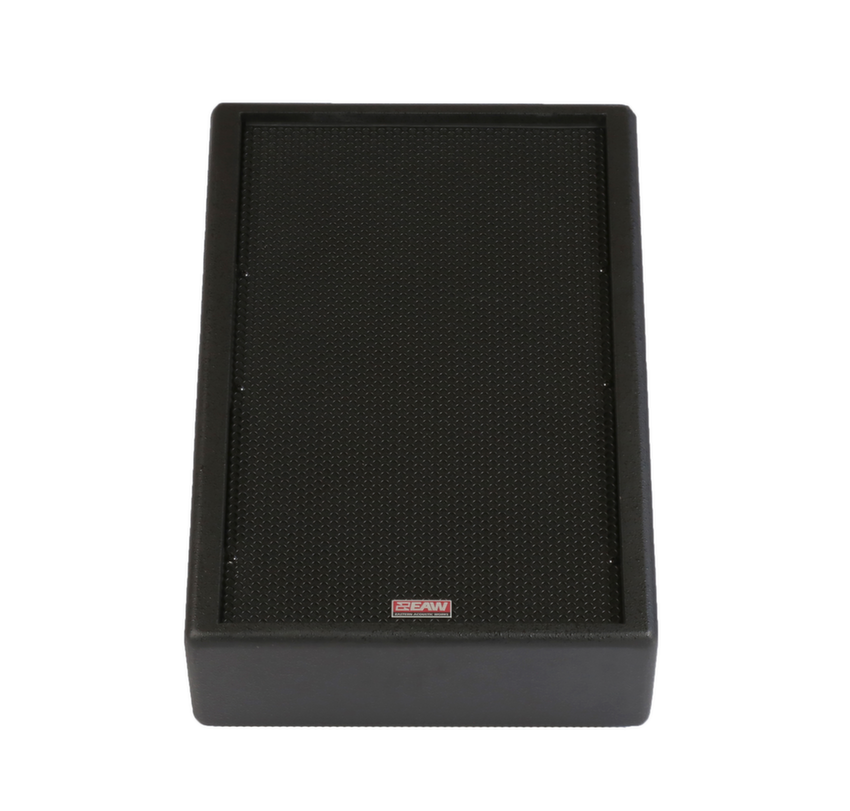

VFM129 PASSIVE TWO-WAY STAGE MONITOR
Overview

The VFM129 two-way, stage monitor loudspeaker system includes a direct-radiating, vented, 12-in LF cone transducer and a 1-in exit / 1.75-in voice coil HF compression driver loaded with a large, square, user-rotatable 90×60 coverage pattern horn.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFM129 can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFM129 features a classic stage monitor design with NL4 connectors located on both sides for easy loop-through connections. They also include a pole mount cup should they need to be used as small PA mains. Engineers integrated the handles into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.

1. Two-way, full range loudspeakers
2. Classic stage monitor design
3. Pole mount cup for use as main system
4. Large, user-rotatable horns for optimized pattern control
5. Beamwidth-matching crossover point
6. Long-lasting reliability

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF 1x 12-in cone; HF 1x 1-in exit, 1.75-in voice coil compression driver
    Loading: LF Vented; HF Horn-loaded
    Operating Mode:
    Amplifier Channels: Single-amp LF/HF
    External Signal Processing: High pass filter

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    65 – 20k
    Axial Sensitivity (1W @ 1m, dB SPL)
    Full Range Passive: 94
    Power Handling / Impedance (Watts @ Ohms)
    Full Range Passive: 500 @ 8
    Calculated Maximum Output Peak (dB SPL)
    Full Range Passive: 127
    Calculated Maximum Output Long Term (dB SPL)
    Full Range Passive: 121
    Nominal Coverage (degrees)
    Horizontal: 90
    Vertical: 60
    Subsystems
    LF: 12-in cone, vented
    HF: 1-in exit compression driver, horn-loaded
    Powering
    Full range

  • ORDERING DATA
    Versions
    VFM129 Black 2038065-90
    VFM129 White 2038851-90
    Dimensions (inches/millimeters)
    Height (stage): 17.8/452
    Width: 14.8/375
    Depth: 21.3/542
    Floor Angle (degrees up): 37
    Weights (pounds/kilogram)
    Net: 41/18.5
    Shipping: 53/34.0
