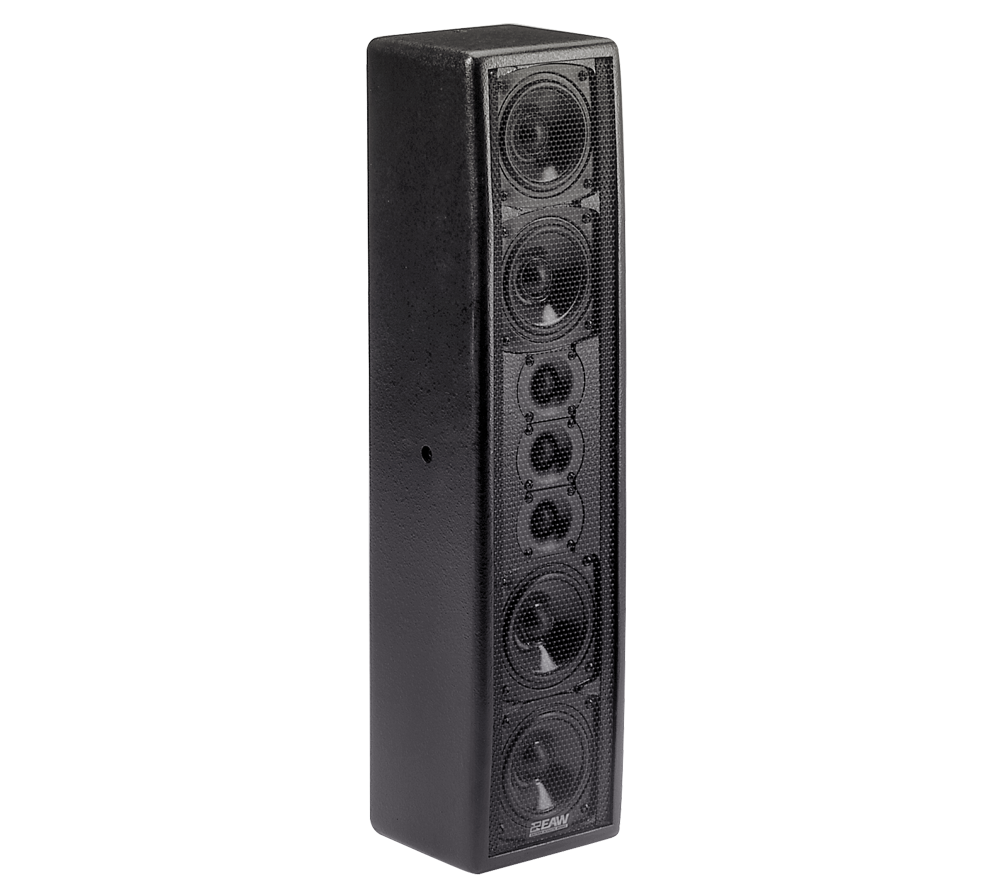

LS432i PASSIVE TWO-WAY COLUMN ENCLOSURE
Overview

EAW’s LS432i line source loudspeaker system brings the classic column speaker up-to-date. Sophisticated frequency shading and all-pass filtering integrates the 4x 4-in woofers and 3x 1-in soft dome tweeters, maximizing the benefits of line source coupling while eliminating grading lobes.

The system maintains a well behaved nominal vertical coverage pattern of 20°  to below 1000 Hz. Even at 500 Hz, the vertical pattern is still 80° . With the enclosure baffle defining a gentle arc, the drivers form a curved line source to help prevent the vertical pattern from collapsing in the crossover region.

At the same time, the drivers act as direct radiators in the horizontal plane, giving the system an extra-wide 140°  horizontal coverage pattern with response that meets professional standards for fidelity and intelligibility.

The internal passive crossover/filter network uses complex, asymmetrical slopes to integrate the subsystems and goes beyond merely dividing the signal to perform critical equalization functions.

Features
1. High performance Column Array(tm) system
2. 4x 4-in LF/3x 1-in tweeters
3. Line array effects create consistent 20°  x 140° coverage
4. For permanent installation only

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF – 4x 4 in. cone; HF – 3x1i.n soft dome tweeter

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    100 – 20k
    Axial Sensitivity (1W @ 1m, dB SPL)
    Full Range: 95
    Power Handling/Impedance (Watts @ Ohms)
    Full Range: 150 @ 8
    Calculated Maximum Output Peak (dB SPL)
    Full Range: 122.8
    Calculated Maximum Output Long Term (dB SPL)
    Full Range: 117
    Nominal Coverage (degrees)
    Horizontal: 140
    Vertical: 20

  • ORDERING DATA
    Versions
    LS432i Black 0029898-90
    LS432i White 0029899-90
    LS432iMT-WP 64W Black 0029902
    LS432iMT-WP 64W White 0031159
    Dimensions (inches/millimeters)
    Height: 26.00/660
    Width: 6.25/159
    Depth: 6.00/152
    Weights (pounds/kilograms)
    Net: 20/9.1
    Shipping: 23/10.5
