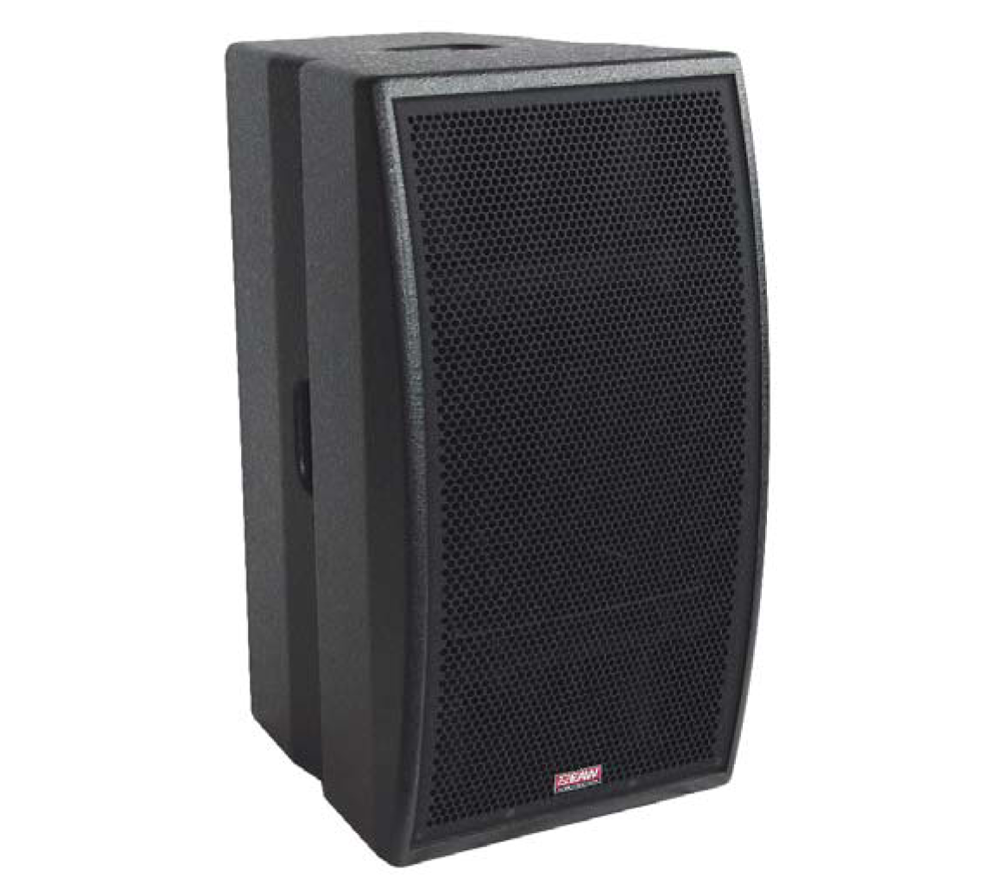

The newest additions to the legendary KF Series of premium 3-way loudspeakers pack even more capability and application flexibility into an ultra-compact package. The integration of premium neodymium components, a co-axial mid/high frequency component and world-renowned crossover design into an adaptable enclosure offers unprecedented utility. They natively offer both portable features and M10 installation points.
Available universal accessories include trim plates that hide handles, u-brackets, quick release flytrack segments that integrate into any enclosure and adjustable legs for use as a stage monitor. Add revolutionary EAW Focusing in the UX8800 Processor for the pinnacle of performance in any venue.
1. Premium Performance
2. Application Flexibility
3. Neodymium Components
4. NT upgrade capability
5. Switch configurable powering modes (passive/bi-amp)
CONFIGURATION
Subsystem:
Transducer: LF – 2x 10 in. cone; MF -1x 1.4 in. cone, 3.5 in. coil compression mid; HF – 1x1.4in. exit, 1.75 in voice coil compression driver
Loading: LF – Vented; MF – Horn-loaded; HF – Horn-loaded
Operating Mode:
Amplifier Channels: Passive; Bi-amp LF,MF/HF
External Signal Processing: Hi pass filter; DSP w/ EAW FocusingPERFORMANCE
Operating Range (-10 dB, Hz)
64 – 20k
Axial Sensitivity (1W @ 1m, dB SPL)
LF: 99
Passive MF/HF: 111
Full Range: 98
Power Handling / Impedance (Watts @ Ohms)
LF: 750 @ 8
Passive MF/HF: 150 @ 8
Full Range: 1100 @ 8
Calculated Maximum Output Peak (dB SPL)
LF: 134
Passive MF/HF: 139
Full Range: 134
Calculated Maximum Output Long Term (dB SPL)
LF: 128
Passive MF/HF: 133
Full Range: 128
Nominal Coverage (degrees)
Horizontal: 60
Vertical: 45
Subsystems
LF: 2x 10-in cone, vented, tuned spacing
MF: 1.4-in cone, horn-loaded, coaxial with HF
HF: 1.4-in exit compression driver, horn-loaded
Powering
Switchable: bi-amplified/passiveORDERING DATA
Versions
KF364 Black 2034958-00
KF364-WP Black 2037235
Accessories Part Number
M10 × 37mm Forged Shoulder Eyebolt 0029818
U-Bracket Adjustable S1 BLK, UBKT-S1 2035474
Leg Adjustable S (2 Per), ACC-LGS 2035438
Flytrack S (2 Per), ACC-FTS 2035439
Cover Plate S (2 Per) BLK, ACC-CPS 2035473
Fly Clip with Ring 0001386
Dimensions (inches/millimeters)
Height: 25.50/648
Width (front): 13.94/354
Width (rear): 8.86/225
Depth: 17.13/435
Trap. Angle (degrees per side): 10.15
Weights (pounds/kilograms)
Net: 65/29.5
Shipping: 75/34.0
