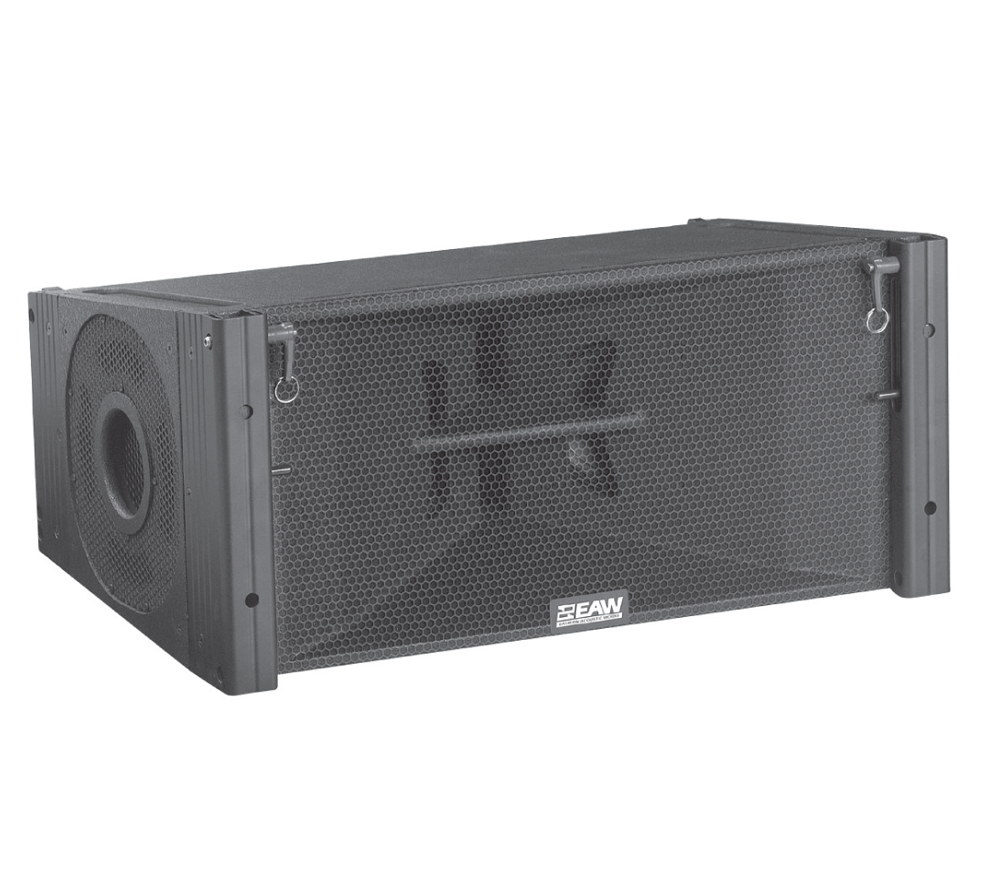

KF737
Overview

The KF737 line array system is optimized for a wide range of touring and installation applications. With its exceptional output to size ratio, KF737 is the ideal solution for those applications where high output potential and unmatched sound quality is required in a lightweight compact package including touring sound, corporate A/V, sports arenas, houses of worship, performing arts centers, hotel ballrooms and live clubs.

The KF737 delivers premium, high output, 3-way performance in an extremely compact and easy-to-use package. Dual 1” HF compression drivers and dual 7-in horn loaded MF transducers are integrated through a common horn that occupies the entire face of the enclosure. The exceptional pattern control offered by this configuration is extended even further (down to 160 Hz) as the MF devices are transitioned to a spaced array of two 10-in woofers. The pair of LF devices integrated within the MF/HF horn combined with the pair of side-mounted devices provides as much as 18 dB of off-axis rejection. EAW Focused™ processing delivered via UX series processors precisely transitions from one system subsection to another while maintaining nearly perfect 110 degree control.

A full KF737 array provides seamless coverage from directly below the array to hundreds of feet in front. The vertical output can be tailored to match the requirements of any space by varying the splay at the rear of the enclosures as directed by EAW Resolution™ 2 software. The resultant configuration repeatedly produces a continuous, coherent wave front of extended-range, high resolution audio over the entire defined coverage area. The versatile KF737 can also be integrated beneath KF740 modules to extend the reach of the range to any application imaginable. When extended low frequency performance is required, KF737 seamlessly arrays with its companion SB730 subwoofer and is also perfectly matched to the renown SB1002 touring subwoofer, allowing the system to be used for even the most demanding applications. For long-throw applications, the optional Zero Degree Adapter Bracket enables modules to be ‘flat-fronted’, extending array size and SPL.

KF LINE SOURCE VOICING UPDATE Leveraging data and experience from development of Adaptive Systems™, updated Greybox™ processing enhances performance of KF737, incorporating improved equalization, crossover, Focusing™ and limiting parameters for even better system performance without physical changes. The update brings significantly improved low-mid directivity, dramatically reducing rear sound radiation as well as improved limiting and overall driver protection, while making it sonically more consistent with KF720, KF740 and Adaptive Systems. Updated Greyboxes™ are available here.

FEATURES
•  High output to size ratio
•  Exceptional pattern control due to symmetrical design, large horn and Phase-Aligned™ woofers
•  16 ohm impedance allows powering 8 KF737s with 2 amplifier channels
•  Incorporates EAW Focusing™ for outstanding mid and high frequency transient response channels

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF – 2x 10 in cone; MF – 2x 7 in. cone; HF – 2x 1 in exit, 1.75 in voice coil neodymium compression driver
    Loading: LF – Phase Aligned™; MF – Horn-loaded ; HF – Horn-loaded w/Radial Phase Plug™
    Operating Mode:
    Amplifier Channels: Bi-amp LF, MF/HF
    External Signal Processing: DSP w/EAW Focusing

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    60 – 19k
    Axial Sensitivity (1W @ 1m, dB SPL)
    LF: 91
    Passive MF/HF: 107
    Power Handling / Impedance (Watts @ Ohms)
    LF: 700 @ 16
    Passive MF/HF: 350 @ 16
    Calculated Maximum Output Peak (dB SPL)
    LF: 125
    Passive MF/HF: 139
    Calculated Maximum Output Long Term (dB SPL)
    LF: 119
    Passive MF/HF: 133
    Nominal Coverage (degrees)
    Horizontal: 75
    Vertical: 12
    Subsystems
    LF: 2x 10-in cone, sealed, phase aligned
    MF: 2x 7-in cone, horn-loaded
    HF: 2x 1-in exit compression driver, horn-loaded
    Powering
    Bi-amplified

  • ORDERING DATA
    Versions
    KF737 Black 0016014
    KF737P Black 0011283
    KF737P White 0022194
    KF737P-WP Black 2034764
    Accessories        Part Number
    KF730/737 Caster Pallet, PLT73K     0006385
    KF730/737/SB730 Fly Bar, FB173   0006385
    KF730/737 Pull Bar, PB173    0008090
    KF730/737/SB730 Spare Pin, QRP2   0020558-02
    KF730P/737P/SB730P Fly Bar, FB173P  0008108
    KF730P/737P Pull Bar, PB173P   0008363
    Quick Release Pins QRP2, (Spare)  0020558-01
    Caster Pallet, PLT73K     0006385
    Dimensions (inches/millimeters)
    Height (front): 13.00/330.2
    Height (rear): 9.60/243.8
    Width: 28.50/723.9
    Depth: 17.54/445.6
    Trap. Angle (degrees, top and bottom): 6
    Weights (pounds/kilogram)
    Net: 77/34.7
    Shipping: 85/38.3
