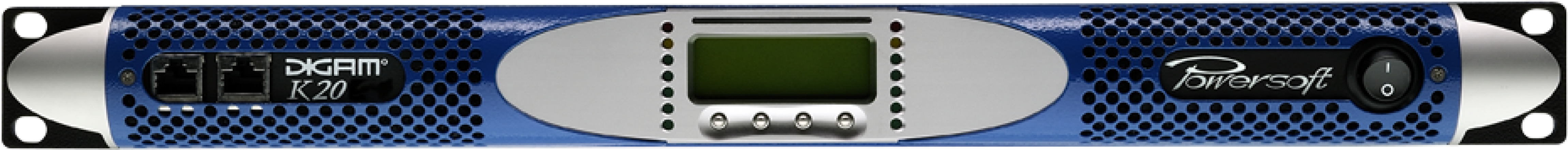

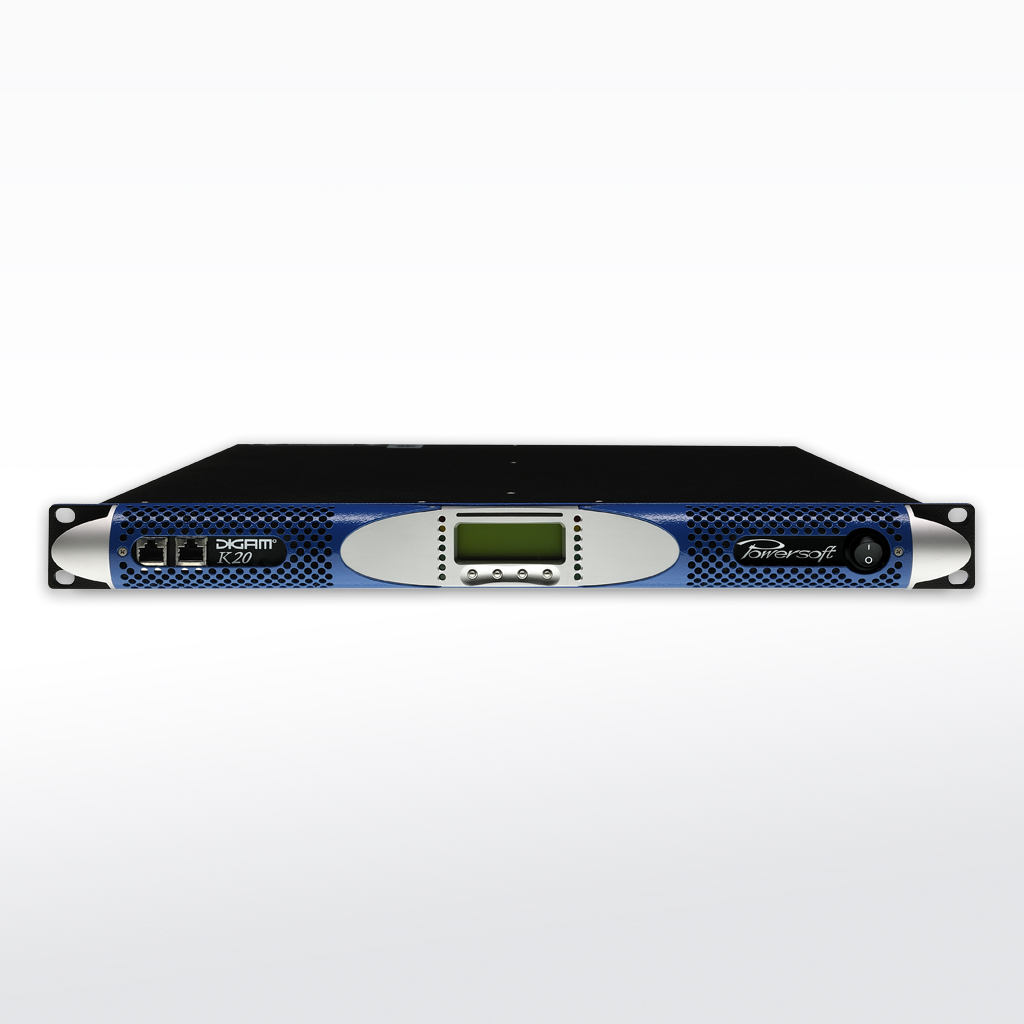

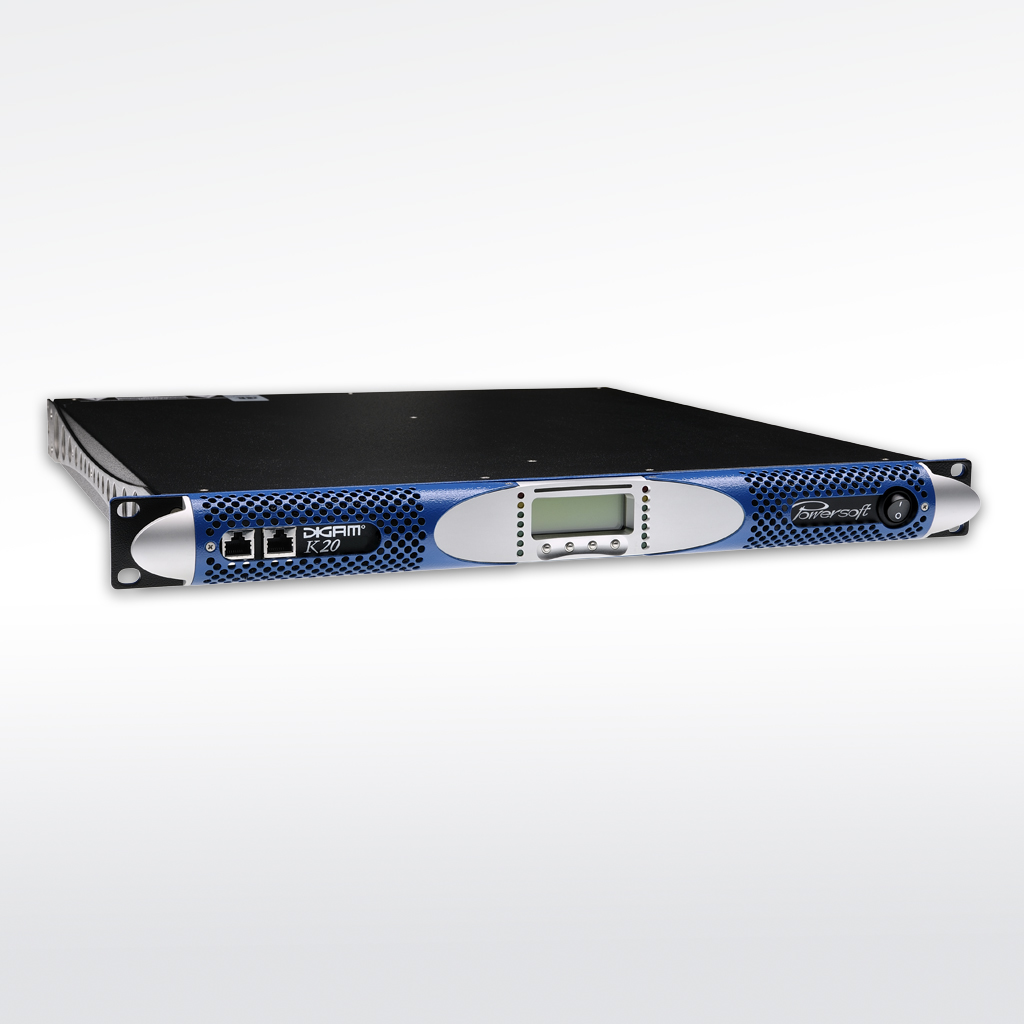

The K20 impresses with up to 18,000 W in a single rack space, making it probably the most powerful amplifier at its size, and definitely the most powerful model within the K Series, the most advanced line of power amplifiers from Powersoft.
Ideal for subwoofers requiring relatively high continuous power and ample headroom, the K20 is the unique result of smart design, attention to sound quality, and extremely high efficiency with reliability, portability, and adaptability in mind.
In use worldwide by leading touring and event sound companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package size.
Fully digitally controlled and with a serial PC communication port as standard, the K20 is also available with KDSP board and KAESOP Ethernet/AES3 interface: the K20 DSP+AESOP amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities, remotely controllable via Powersoft's Armonía Pro Audio Suite™ (Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems).
Power supply
Advanced switch-mode worldwide operating power supply technology for high performance and compact size
Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencersProtections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behaviourGeneral
Fixed frequency switchmode output stage for high grade sound accuracy
Compact size - all models only 1 RU for reduced rack cost and space
Light weight - for easier racking and shipping: 12 kg (26.5 lbs) according to configuration

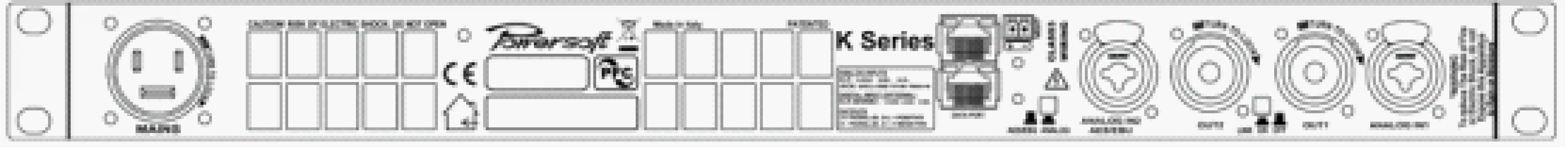

Combo XLR/6.3mm jack Neutrik input connectors with link capability
AES3 digital input*Settings
LCD matrix interactive display
Comprehensive-user friendly front panel display menu
Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoringMonitoring
Hardware monitor available for fast local diagnostic
Load impedance measurement / display for each channel
Output power measurements / display for each channel
Mains voltage and current measurements / display
Downloadable log file of functional fault events with time related trace
Smart Card settings, parameters and upgrades functionalityDigital Signal Processing*
Analog Devices SHARC® DSP architecture
AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 1 s for time alignment
Active DampingControl™ for cable compensation
Power limiter (TruePower™, RMS voltage, RMS current) + Peak LimiterRemote management*
Control and monitoring through Armonía Pro Audio Suite™
Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems
* = DSP+AESOP version
