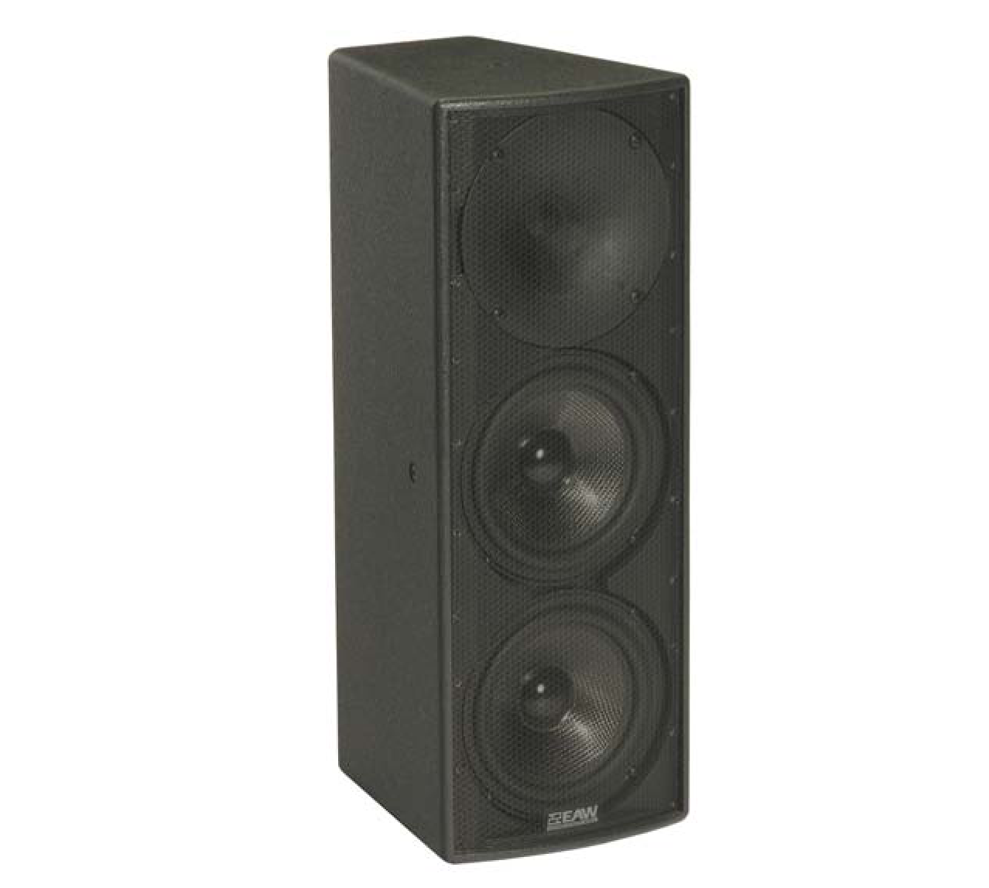

JF80z Passive Two-Way Trapezoidal Enclosure
Overview

The JF80z is an ultra compact loudspeaker, engineered for exceptional, near-field performance. It provides surprisingly high output and exceptional fidelity for foreground and background music applications. Its speech projection capabilities also make it very effective as a fill or delay element in larger audio systems.

Unlike many compact loudspeakers, the JF80z produces the high impact, high definition sound projection expected in professional PA applications. Its wide angle projection makes audience coverage easy in a variety of situations. While the JF80z is well suited as is for many applications, the addition of a subwoofer can expand its capabilities for more demanding applications.

Foam-backed grilles hide the drivers from view for pleasing aesthetics. Top, bottom and side mounting points allow enclosures to be mounted in virtually any configuration using eyebolts or accessory brackets. Additional mounting points accept an OmniMount® 30.0 Series or similar bracket and a third-party, external, stand adapter for pole mounting, such as the K&M™ 195/8 or Ultimate Support™ BMB-200K. Standard colors are black and white. Other colors can be specified as a special order items.



1. Compact loudspeaker with no compromise in sound quality
2. For portable use or permanent installation
3. 100° conical beamwidth
4. Passive crossover for single amplifier operation

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF 2x 6.5 in. cone; HF 1x 1 in. exit, 1.75 in voice coil compression driver
    Loading: LF – Sealed; HF – Waveguide Plate™
    Operating Mode:
    Amplifier Channels: Single amp LF/HF
    External Signal Processing: High Pass Filter

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    85 – 20k
    Axial Sensitivity (1W @ 1m, dB SPL)
    Full Range: 90
    Power Handling / Impedance (Watts @ Ohms)
    Full Range: 450 @ 8
    Calculated Maximum Output Peak (dB SPL)
    Full Range: 123
    Calculated Maximum Output Long Term (dB SPL)
    Full Range: 117
    Nominal Coverage (degrees)
    Horizontal: 100
    Vertical: 100
    Subsystems
    LF: 2x 6.5-in cone, sealed
    HF: 1-in exit compression driver, Waveguide Plate™
    Powering
    Passive

  • ORDERING DATA
    Versions
    JF80z Black 0012619-90
    JF80z White 0013772-90
    JF80zMT 64W Black 0013771
    JF80zPL-WP Black 0014360
    Accessories Part Number
    Eyebolt/Forged Shoulder (1/4-20 x 1 in)
    104009
    U-bracket JF80z Black [UBKT80]
    0012345
    U-bracket JF80z White [UBKT80]
    0012348
    U-bracket vertical JF80z Black [UBKT80V]
    0012395
    U-bracket vertical JF80z White [UBKT80V]
    0012396
    Dimensions (inches/millimeters)
    Height: 20.93/532
    Width (front): 7.83/199
    Width (rear): 4.69/119
    Depth: 9.72/247
    Trap. Angle (degrees per side): 10
    Weights (pounds/kilograms)
    Net: 25/11.3
    Shipping: 30/13.5
